The AP is classified as a rogue because it is connected to your LAN and is transmitting wireless traffic with your network’s default gateway’s MAC address as a source MAC. In this scenario, the ‘Match method = Exact match’ and ‘Match type = Eth-GW-wired-Mac-Table’ indicates that the rogue AP has been detected by matching the Ethernet gateway’s MAC address, which is on the wired network, implying that the rogue AP is connected to the corporate LAN. Since the AP does not belong to the company, its presence on the network is unauthorized and is thus classified as a rogue AP.
References:
ArubaOS documentation on rogue AP detection and classification.
Wireless security best practices that explain how the presence of unauthorized APs on the LAN constitutes a security threat.

Tunneling traffic between an Aruba switch and an Aruba Mobility Controller (MC) allows for the centralized application of firewall policies and deep packet inspection to wired clients. By directing traffic through the MC, network administrators can implement a consistent set of security policies across both wired and wireless segments of the network, enhancing overall network security posture.

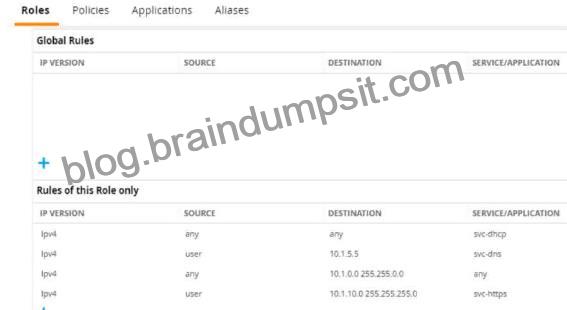

Referring to the exhibit, the ArubaOS Mobility Controller treats HTTPS packets based on the firewall rules applied to the client. The rule that allows svc-https service for destination IP range 10.1.0.0 255.255.0.0 would permit an HTTPS packet to 10.1.10.10 since this IP address falls within the specified range. There are no rules shown that would allow traffic to the IP address 203.0.13.5; hence, the packet to this address would be dropped.
:
ArubaOS firewall configuration guides detailing how firewall rules are interpreted and applied to traffic.
Network security textbooks explaining firewall rule processing and packet filtering based on source and destination IP addresses.

The AOS Security Dashboard in an AOS-8 solution (Mobility Controllers or Mobility Master) provides a client list through its Wireless Intrusion Prevention (WIP) system, showing the classification of clients and the APs they are connected to. The goal is to identify clients that belong to the company (Authorized clients) and have connected to devices that might belong to hackers (rogue or suspected rogue APs).
Client Classification:
Authorized: A client that has successfully authenticated to an authorized AP and is part of the company’s network (e.g., an employee device).
Interfering: A client that is not authenticated to the company’s network and is considered external or potentially malicious.
AP Classification:
Authorized: An AP that is part of the company’s network and managed by the MC.
Suspected Rogue: An AP that is not authorized and is suspected of being malicious, often because it exhibits suspicious behavior (e.g., a BSSID close to an authorized AP, indicating potential spoofing).
Neighbor: An AP that is not part of the company’s network but is not connected to the wired network (e.g., a nearby AP from another organization).
Interfering: An AP that is not part of the company’s network and may be causing interference, but is not necessarily malicious.
The requirement is to find a client that is Authorized (belongs to the company) and connected to a Suspected Rogue AP (might belong to hackers).
Option A: MAC address: d8:50:e6:f3:6d:a4; Client Classification: Authorized; AP Classification: Suspected Rogue This client is classified as “Authorized,” meaning it belongs to the company, and it is connected to a “Suspected Rogue” AP, which might belong to hackers. This matches the requirement perfectly.
Option B: MAC address: d8:50:e6:f3:6e:c5; Client Classification: Interfering; AP Classification: Neighbor This client is “Interfering” (not a company client) and connected to a “Neighbor” AP, which is not considered a hacker’s device (it’s just a nearby AP).
Option C: MAC address: d8:50:e6:f3:6e:60; Client Classification: Interfering; AP Classification: Interfering This client is “Interfering” (not a company client) and connected to an “Interfering” AP, which is not necessarily a hacker’s device (it may just be causing interference).
Option D: MAC address: d8:50:e6:f3:70:ab; Client Classification: Interfering; AP Classification: Suspected Rogue This client is “Interfering” (not a company client), although it is connected to a “Suspected Rogue” AP. It does not meet the requirement of being a company client.
The HPE Aruba Networking AOS-8 8.11 User Guide states:
“The Security Dashboard’s client list in ArubaOS shows the classification of each client and the AP it is connected to. An ‘Authorized’ client is one that has successfully authenticated to an authorized AP and is part of the company’s network. A ‘Suspected Rogue’ AP is an unauthorized AP that exhibits suspicious behavior, such as a BSSID close to an authorized AP, indicating potential spoofing by a hacker. To identify security risks, look for authorized clients connected to suspected rogue APs, as this may indicate a company device has connected to a malicious AP.” (Page 415, Security Dashboard Section) Additionally, the HPE Aruba Networking Security Guide notes:
“WIP classifies clients as ‘Authorized’ if they have authenticated to an authorized AP managed by the controller. A ‘Suspected Rogue’ AP is a potential threat, as it may be attempting to mimic a legitimate AP to lure clients. Identifying authorized clients connected to suspected rogue APs is critical for detecting potential attacks, such as man-in-the-middle attempts by hackers.” (Page 78, WIP Classifications Section)
:
HPE Aruba Networking AOS-8 8.11 User Guide, Security Dashboard Section, Page 415.
HPE Aruba Networking Security Guide, WIP Classifications Section, Page 78.

When vulnerabilities are identified in systems, it is crucial for administrators to act immediately to mitigate the risk of exploitation by attackers. The appropriate response involves applying fixes, such as software patches or configuration changes, to close the vulnerability. This proactive approach is necessary to protect the integrity, confidentiality, and availability of the system resources and data. It’s important to prioritize these actions based on the severity and exploitability of the vulnerability to ensure that the most critical issues are addressed first.References:
Best practices in system security management.

The AAA (Authentication, Authorization, and Accounting) framework is used in network security to manage user access. In this framework, the Network Access Server (NAS) plays a specific role. In an HPE Aruba Networking environment, the NAS is typically a device like a Mobility Controller (MC) or an AOS-CX switch that interacts with an AAA server (e.g., ClearPass Policy Manager, CPPM) to authenticate users.
NAS Role in AAA:
Authentication: The NAS acts as a client to the AAA server (e.g., via RADIUS), forwarding authentication requests from the user’s device to the server. It does not perform the authentication itself; the AAA server authenticates the user.
Authorization: After authentication, the NAS receives authorization attributes from the AAA server (e.g., a user role via Aruba-User-Role VSA) and enforces access policies (e.g., firewall rules, VLAN assignment) based on those attributes.
Accounting: The NAS sends accounting information (e.g., session start/stop, data usage) to the AAA server to track user activity.
Option A, “It negotiates with each user’s device to determine which EAP method is used for authentication,” is incorrect. The NAS does not negotiate the EAP method with the user’s device. The EAP method (e.g., EAP-TLS, PEAP) is determined by the configuration on the NAS and the AAA server, and the client must support the configured method. The negotiation of EAP methods occurs between the client (supplicant) and the AAA server, with the NAS acting as a pass-through.
Option B, “It determines which resources authenticated users are allowed to access and monitors each user’s session,” is incorrect. The NAS enforces access policies based on authorization attributes received from the AAA server, but it does not determine which resources users can access-that decision is made by the AAA server based on its policies. Monitoring sessions is part of accounting, but this option overstates the NAS’s role in determining access.
Option C, “It enforces access to network services and sends accounting information to the AAA server,” is correct. The NAS enforces access by applying policies (e.g., firewall rules, VLANs) based on the authorization attributes received from the AAA server. It also sends accounting information (e.g., session start/stop, data usage) to the AAA server to track user activity, fulfilling its role in the accounting part of AAA.
Option D, “It authenticates legitimate users and uses policies to determine which resources each user is allowed to access,” is incorrect. The NAS does not authenticate users; the AAA server performs authentication. The NAS also does not determine resource access; it enforces the policies provided by the AAA server.
The HPE Aruba Networking AOS-8 8.11 User Guide states:
“In the AAA framework, the Network Access Server (NAS), such as a Mobility Controller, acts as a client to the AAA server (e.g., a RADIUS server). The NAS forwards authentication requests from the user’s device to the AAA server, enforces access to network services based on the authorization attributes returned by the server (e.g., user role, VLAN), and sends accounting information, such as session start and stop records, to the AAA server for tracking.” (Page 310, AAA Framework Section) Additionally, the HPE Aruba Networking ClearPass Policy Manager 6.11 User Guide notes:
“The NAS in the AAA framework, such as an Aruba Mobility Controller, does not authenticate users itself; it forwards authentication requests to the AAA server (ClearPass). After authentication, the NAS enforces access policies based on the server’s response and sends accounting data to the AAA server to log user activity, such as session duration and data usage.” (Page 280, NAS Role in AAA Section)
:
HPE Aruba Networking AOS-8 8.11 User Guide, AAA Framework Section, Page 310.
HPE Aruba Networking ClearPass Policy Manager 6.11 User Guide, NAS Role in AAA Section, Page 280.

The scenario involves AOS-CX switches in a two-tier topology (access and core layers) using OSPF routing at the core. The goal is to prevent ARP poisoning attacks on user VLANs at the access layer switches, where end-user devices connect. ARP poisoning (also known as ARP spoofing) is an attack where a malicious device sends fake ARP messages to associate its MAC address with the IP address of another device (e.g., the default gateway), allowing the attacker to intercept traffic.
ARP Inspection (Dynamic ARP Inspection, DAI): This feature prevents ARP poisoning by validating ARP packets against a trusted database of IP-to-MAC bindings. On AOS-CX switches, ARP inspection uses the DHCP snooping binding table to verify that ARP messages come from legitimate devices. If an ARP packet does not match the binding table, it is dropped.
DHCPv4 Snooping: This feature protects against rogue DHCP servers and builds a binding table of legitimate IP-to-MAC mappings by snooping DHCP traffic. The binding table is used by ARP inspection to validate ARP packets. DHCP snooping must be enabled before ARP inspection can function effectively, as it provides the trusted data for validation.
Option A, “ARP inspection,” is correct. ARP inspection (DAI) directly prevents ARP poisoning by ensuring that ARP packets are legitimate, making it a key technology for this purpose.
Option B, “OSPF passive interface,” is incorrect. OSPF passive interface is used to prevent OSPF from sending routing updates on specific interfaces, typically to reduce routing protocol traffic on user-facing interfaces. It does not prevent ARP poisoning, which is a Layer 2 attack.
Option C, “BPDU guard (protection),” is incorrect. BPDU guard protects against spanning tree protocol (STP) attacks by disabling a port if it receives BPDUs (e.g., from an unauthorized switch). It does not address ARP poisoning, which is unrelated to STP.
Option D, “DHCPv4 snooping,” is correct. DHCP snooping is a prerequisite for ARP inspection, as it builds the binding table used to validate ARP packets. It also protects against rogue DHCP servers, which can indirectly contribute to ARP poisoning by assigning incorrect IP addresses.
Option E, “BPDU filtering,” is incorrect. BPDU filtering prevents a port from sending or receiving BPDUs, which can be used to protect against STP attacks, but it does not prevent ARP poisoning.
The HPE Aruba Networking AOS-CX 10.12 Security Guide states:
“To prevent ARP poisoning attacks on user VLANs, enable Dynamic ARP Inspection (DAI) on access layer switches. DAI validates ARP packets against the DHCP snooping binding table to ensure they come from legitimate devices. Use the command ip arp inspection vlan <vlan-list> to enable DAI on the specified VLANs. DHCP snooping must be enabled first with dhcp-snooping and dhcp-snooping vlan <vlan-list> to build the binding table used by DAI.” (Page 145, ARP Inspection and DHCP Snooping Section) Additionally, the guide notes:
“DHCP snooping and ARP inspection work together to protect against Layer 2 attacks like ARP poisoning. DHCP snooping builds a trusted database of IP-to-MAC bindings, which ARP inspection uses to filter out malicious ARP packets.” (Page 146, Best Practices Section)
:
HPE Aruba Networking AOS-CX 10.12 Security Guide, ARP Inspection and DHCP Snooping Section, Page 145.
HPE Aruba Networking AOS-CX 10.12 Security Guide, Best Practices Section, Page 146.

The exhibit shows the configuration of a WLAN on an AOS-8 Mobility Controller (MC) with the following settings:
Key management: WPA3-Enterprise (indicating 802.1X authentication).
Use CNSA suite: Unchecked (using standard encryption, not the Commercial National Security Algorithm suite).
Key size: 128 bits (standard for AES-GCMP in WPA3).
Reauth interval: 1440 minutes (24 hours, the interval for re-authentication).
Machine authentication: Disabled (only user authentication is required).
Blacklisting: Disabled (clients are not blacklisted after failed attempts).
The question states that the AAA profile settings have not been adjusted, meaning the default roles (e.g., initial role, logon role, 802.1X default role) are not specified in the exhibit and are assumed to be the system defaults (e.g., “logon” for the initial and logon roles, and a default role like “guest” for the 802.1X default role). The question asks under which circumstances a client will receive the “default role assignment,” which refers to the 802.1X default role configured in the AAA profile for the WLAN.
802.1X Authentication Process in AOS-8:
When a client connects to a WPA3-Enterprise WLAN, it starts in the initial role (typically “logon”) to allow basic connectivity (e.g., DHCP, DNS).
During 802.1X authentication, the client is placed in the logon role to allow communication with the authentication server (e.g., ClearPass Policy Manager, CPPM).
If authentication succeeds, the client is assigned a role:
If the authentication server (e.g., CPPM) sends an Aruba-User-Role VSA with a role that exists on the MC, the client is assigned that role.
If no Aruba-User-Role VSA is sent, the client is assigned the 802.1X default role configured in the AAA profile for the WLAN.
If authentication fails or the server is unreachable, the client may be assigned a different role (e.g., a critical role, if configured) or denied access.
Option A, “The client has attempted 802.1X authentication, but the MC could not contact the authentication server,” is incorrect. If the MC cannot contact the authentication server (e.g., due to a timeout), the client does not receive the 802.1X default role. Instead, the MC may apply a critical role (if configured) or deny access, depending on the configuration. The 802.1X default role is applied only after successful authentication.
Option B, “The client has passed 802.1X authentication, and the authentication server did not send an Aruba-User-Role VSA,” is correct. If the client successfully authenticates via 802.1X and the authentication server (e.g., CPPM) does not send an Aruba-User-Role VSA, the MC assigns the client the 802.1X default role configured in the AAA profile for the WLAN. This is the “default role assignment” referred to in the question.
Option C, “The client has attempted 802.1X authentication, but failed to maintain a reliable connection, leading to a timeout error,” is incorrect. A timeout error during authentication (e.g., the client fails to respond to EAP messages) typically results in an authentication failure, not a successful authentication. The client would not receive the 802.1X default role; it might be denied access or placed in a different role (e.g., a pre-authentication role).
Option D, “The client has passed 802.1X authentication, and the value in the Aruba-User-Role VSA matches a role on the MC,” is incorrect. If the authentication server sends an Aruba-User-Role VSA with a role that exists on the MC, the client is assigned that specific role, not the 802.1X default role.
The HPE Aruba Networking AOS-8 8.11 User Guide states:
“After a client successfully authenticates via 802.1X, the Mobility Controller assigns a role to the client. If the authentication server (e.g., a RADIUS server) sends an Aruba-User-Role VSA with a role that exists on the controller, the client is assigned that role. If no Aruba-User-Role VSA is sent in the Access-Accept message, the client is assigned the 802.1X default role configured in the AAA profile for the WLAN. For example, if the AAA profile specifies ‘guest’ as the 802.1X default role, the client will be assigned the ‘guest’ role.” (Page 305, Role Assignment Section) Additionally, the HPE Aruba Networking Wireless Security Guide notes:
“In WPA3-Enterprise with 802.1X authentication, the default role assignment occurs when a client successfully authenticates but the authentication server does not specify a role via the Aruba-User-Role VSA. In this case, the client receives the 802.1X default role defined in the AAA profile, such as ‘guest’ or another role configured by the administrator.” (Page 42, 802.1X Role Assignment Section)
:
HPE Aruba Networking AOS-8 8.11 User Guide, Role Assignment Section, Page 305.
HPE Aruba Networking Wireless Security Guide, 802.1X Role Assignment Section, Page 42.

MAC authentication, also known as MAC-Auth, is a method used to authenticate devices based on their Media Access Control (MAC) address. It is often employed in both wired and wireless networks to grant network access based solely on the MAC address of a device. While MAC-Auth is straightforward and doesn’t require complex configuration, it has significant security limitations primarily because MAC addresses can be easily spoofed. Attackers can change the MAC address of their device to match an authorized one, thereby gaining unauthorized access to the network. This susceptibility to MAC address spoofing makes MAC-Auth a weaker security mechanism compared to more robust authentication methods like 802.1X, which involves mutual authentication and encryption protocols.

When responding to the detection of a Rogue AP, it’s important to consider legal implications and to gather forensic evidence:
You should receive permission before containing an AP (Option C), as containing it could disrupt service and may have legal implications, especially if the AP is on a network that the organization does not own.
For forensic purposes, it is essential to document the event by copying out logs with relevant information, such as the time the AP was detected and the AP’s MAC address (Option D). This information could be crucial if legal action is taken or if a detailed analysis of the security breach is required.
Automatically containing an AP without consideration for the context (Options A and E) can be problematic, as it might inadvertently interfere with neighboring networks and cause legal issues. Immediate containment without consideration of company policy (Option B) could also violate established incident response procedures.
References:
Aruba Networks security resources that discuss the appropriate steps in responding to security events.
Industry guidelines on responsible handling of rogue access point detections, including legal considerations and incident documentation.

In the context of ArubaOS Wireless Intrusion Prevention System (WIP), an authorized client is defined as a client that has successfully authenticated to an authorized Access Point (AP) and has passed encrypted traffic.
This ensures that only clients which have been verified and authenticated according to the network’s security policies are allowed to access network resources. Authentication typically involves credentials that are validated by a server, confirming the client’s right to access the network securely.References:
ArubaOS Wireless Intrusion Prevention System configuration and management guidelines.

In WPA3-Enterprise, the Pairwise Master Key (PMK) is indeed unique for each session and is derived using a process called Simultaneous Authentication of Equals (SAE). SAE is a new handshake protocol available in WPA3 that provides better security than the Pre-Shared Key (PSK) used in WPA2. This handshake process strengthens user privacy in open networks and provides forward secrecy. The information on SAE and its use in generating a unique PMK can be found in the Wi-Fi Alliance’s WPA3 specifications and related technical documentation.

The Match method ‘Eth-Wired-Mac-Table’ suggests that the BSSID of the rogue AP has been found in the Ethernet (wired) MAC address table of the network infrastructure. This means the AP is physically connected to the LAN. If the BSSID does not match the company’s authorized APs, it implies the AP is unauthorized and hence classified as a rogue.

In SNMPv3, security is paramount and each SNMP entity (client or agent) needs to have a user with a security name (username) and optionally, a security level which determines whether authentication and encryption are used. When configuring SNMPv3 users on network infrastructure devices, it is essential to match the username, authentication (auth) algorithm, authentication key (auth key), privacy (priv) algorithm, and privacy key (priv key) exactly as they are configured on the SNMP server to ensure successful communication.
This is because the SNMPv3 security model relies on a combination of a username and a pair of keys (authentication and privacy keys) to uniquely identify and secure communication between the agent and the manager. The keys are used to verify the integrity (auth key) and confidentiality (priv key) of the messages. Using the same algorithms ensures that the messages can be properly encrypted and decrypted on both ends.

Based on the exhibits which seem to show RADIUS authentication and CoA logs, one can determine that CPPM (ClearPass Policy Manager) initially assigned the client to a role meant for non-profiled devices and then sent a CoA to the network access device (authenticator) once the device was categorized. This is a common workflow in network access control, where a device is first given limited access until it can be properly identified, after which appropriate access policies are applied.
