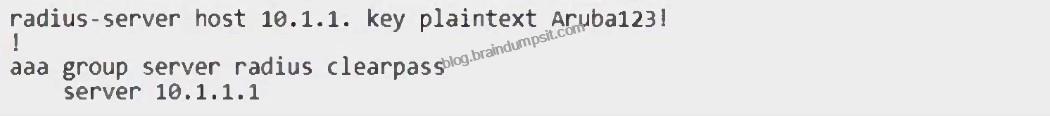

show radius-server detail will display the configured RADIUS servers along with their IP addresses and shared secrets. This helps you verify if the switch’s management IP is properly registered as a NAD (Network Access Device) in ClearPass. If the IP used by the switch to send RADIUS requests is not listed as a NAD in ClearPass, you will see the “unknown NAD” error.

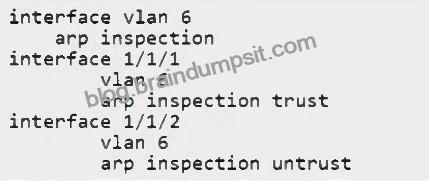

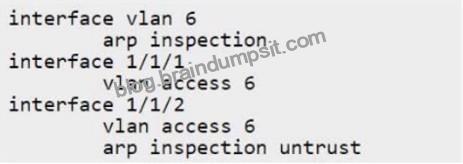

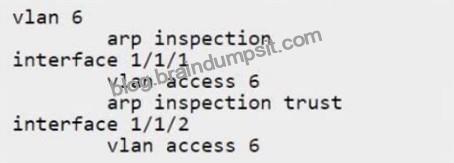

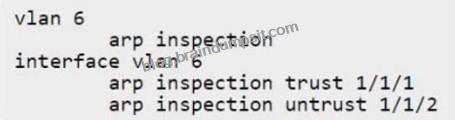

arp inspection must be enabled under the VLAN.
Port 1/1/1 is set as trusted, so ARP packets are not inspected.
Port 1/1/2 is set as untrusted, so ARP packets are inspected.

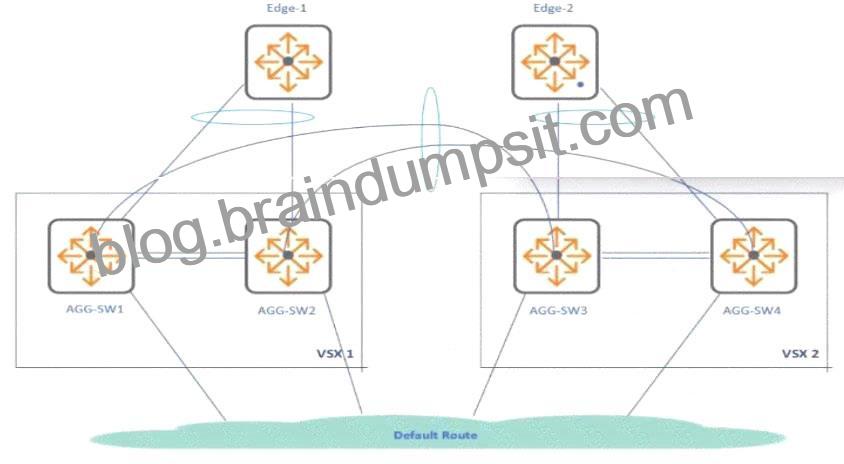

The scenario describes two separate VSX clusters interconnected via MC-LAG, where both clusters are configured to use theexact samevirtual IP address and virtual MAC address for their respective Active Gateway SVIs.
* Active Gateway Scope & Conflict:Active Gateway provides a highly available default gatewaywithina single VSX cluster (L2 domain). The vIP/vMAC combination should be unique within its L2 broadcast domain.
* Interconnecting Clusters with Same vIP/vMAC:When two VSX clusters using the identical Active Gateway vIP/vMAC are interconnected at Layer 2 (even via MC-LAG), this creates a situation where the same active L2 (vMAC) and L3 (vIP) address exists in multiple places within the extended broadcast domain.
* Consequences:This leads to MAC address conflicts and L3 ambiguity. ARP resolution becomes unreliable, potentially causing ARP tables to flap on connected devices. Traffic forwarding becomes unpredictable, as packets destined for the vIP/vMAC might be delivered to the “wrong” cluster. This unstable and unpredictable state is sometimes referred to as an asymmetric or “async” setup.
* Analysis of Options:
* A: ISL traffic might change, but it’s a symptom, not the root problem.
* B: Multiple ARP replies would occur, contributing to the confusion.
* C: The configuration results in an “async setup,” accurately describing the unstable state caused by duplicate active L2/L3 addresses across the interconnected L2 domain.
* D: Load-balancing happens within a cluster; this setup causes conflict, not predictable load balancing across clusters.
* Conclusion:Reusing the same Active Gateway vIP and vMAC across interconnected VSX clusters is not a valid design and leads to an unstable, asymmetric (“async”) environment due to address duplication within the extended L2 domain. Option C best describes this problematic outcome.
References:Aruba VSX Design and Best Practices Guides (Active Gateway uniqueness, Interconnecting VSX clusters). This relates to “Network Resiliency and virtualization” (8%), “Routing” (16%), and
“Troubleshooting” (10%) objectives.

On AOS-CX, the maximum supported TACACS+ key length is 32 characters. A 64-character passphrase cannot be configured, so the CTO’s policy is not technically possible.

A Python developer using the REST API cannot modify the VLAN database on an AOS-CX switch. We need to identify the first settings to check.
* REST API Requirements for Modification:
* HTTPS Server:The REST API operates over HTTPS, so the HTTPS server must be enabled on the switch (show https-server status).
* REST Interface:The REST API interface itself must be enabled (it usually is by default, check with show rest-interface).
* Authentication:The API client must provide valid credentials (username/password or token) for a user account configured on the switch.
* Authorization:The authenticated user account must have sufficient privileges to modify the configuration (e.g., belong to the built-in administrators group or a custom role with appropriate permissions). Check user details (show user <name>) and role permissions (show user roles).
* Analysis of Options:
* A. HTTPS settings: Essential for API communication. Check if enabled.
* B. SSH settings: Irrelevant to REST API.
* C. SNMP settings: Irrelevant to REST API.
* D. REST API settings: Check if enabled (show rest-interface), but it’s usually enabled by default.
Less likely than A or E to be the initial problem.
* E. local-user settings: Crucial for both authentication (correct credentials used?) and authorization (does the user have modification privileges?).
* Conclusion:When a REST API modification fails, the most critical initial checks involve ensuring the API endpoint is accessible (HTTPS Server enabled – A) and that the user account being used for the API call has the necessary permissions (local-user settings, specifically privileges/roles – E).
References:AOS-CX REST API Guide, AOS-CX Security Guide (User Accounts, Roles, HTTPS Server configuration). This relates to “Security” (10%) and “Authentication/Authorization” (9%).

The question asks which function is executed on both VSX members (CX 8325 switches) during normal operation in a VSX cluster.
* Analysis of Options:
* Option A:Correct. Both VSX switches reply to ARP requests with the cluster’s virtual MAC (vMAC) for SVIs configured with active-gateway, ensuring consistent Layer 3 forwarding.
* Option B:Incorrect. PIM (Protocol Independent Multicast) and PIM-DR roles are typically handled by one switch, not both, in a VSX cluster.
* Option C:Incorrect. DHCP relay or server functions are not necessarily performed by both switches simultaneously.
* Option D:Incorrect. Gratuitous ARP and broadcast hello packets are typically sent by the primary switch or specific protocols, not both VSX members for all cases.
* Why Option A is Correct:In a VSX cluster, the active-gateway feature allows both switches to respond to ARP requests for Switched Virtual Interfaces (SVIs) using a shared virtual MAC address (vMAC). This ensures seamless Layer 3 forwarding and high availability, as clients receive consistent ARP replies regardless of which VSX switch processes the request. The vsx-sync feature ensures the vMAC is synchronized, enabling both switches to perform this function during normal operation, as per HPE Aruba Networking’s VSX architecture.
* Relevance to Certification Objectives:
* Network Resiliency and Virtualization (8%):Designing and troubleshooting VSX for redundancy and active-active forwarding.
* Switching (19%):Implementing Layer 2/3 technologies, including ARP handling in VSX.
* Routing (16%):Ensuring consistent Layer 3 operations in VSX environments.
References:
HPE Aruba Networking AOS-CX Configuration Guide: VSX Configuration, detailing active-gateway and vMAC usage.
HPE7-A06Study Guide: Covers VSX Layer 3 functions and ARP handling.
HPE Aruba Networking Technical Documentation: VSX Active-Gateway Best Practices.

In AOS-CX, Group-Based Policy (GBP) relies on correct tagging of user traffic. If GBP tags are not applied properly, even users with the correct roles and permissions will not be able to access the intended network resources. This makes incorrect tag application the most likely cause of the BGP-related issue described.

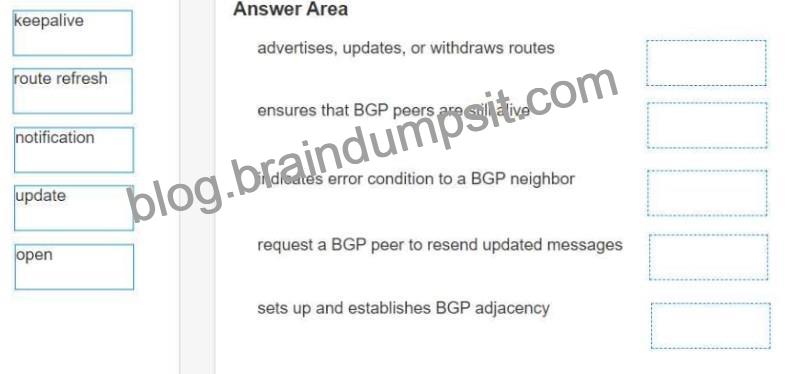

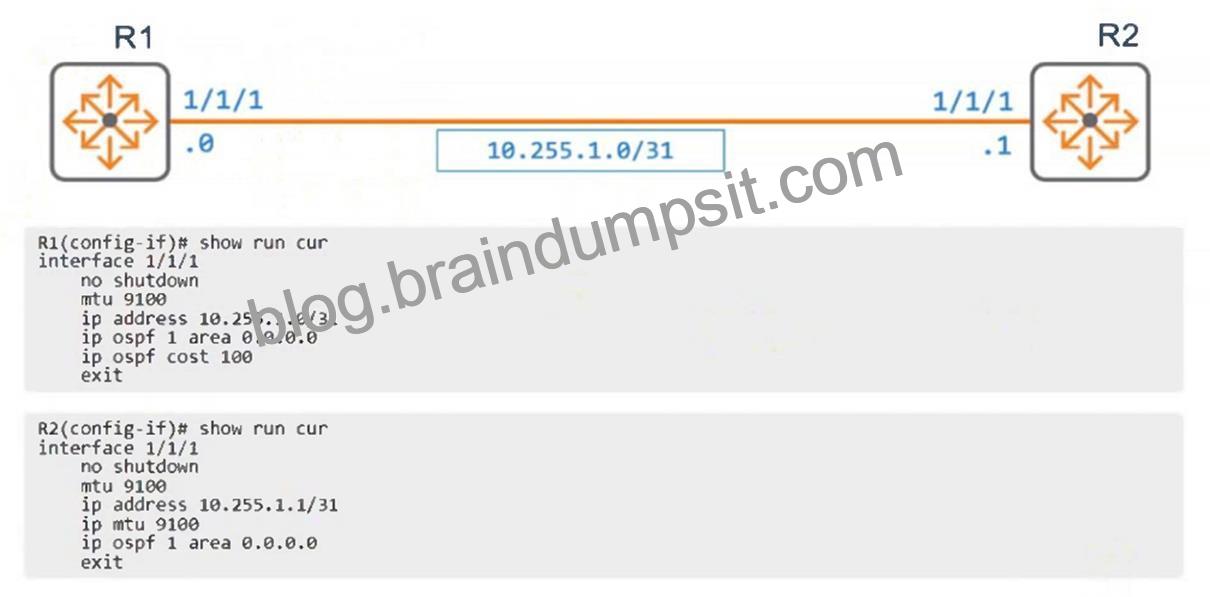

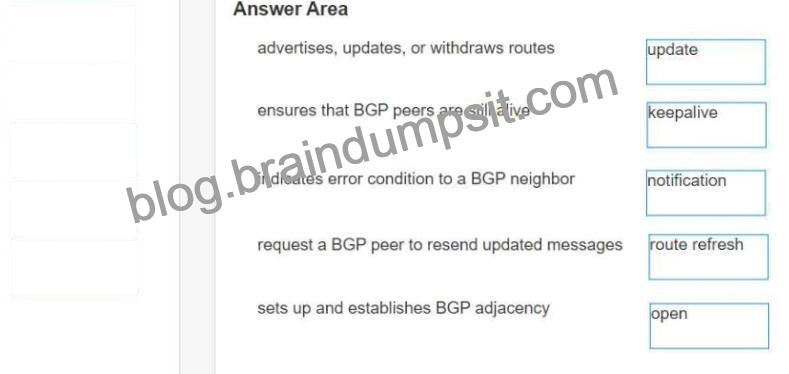

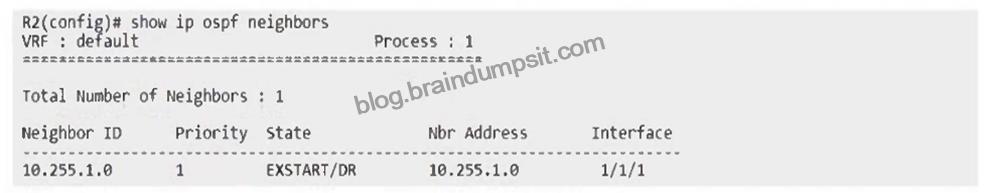

The OSPF adjacency is stuck in the EXSTART/DR state because the broadcast network type is being used by default on the /31 link. On a /31 point-to-point link, OSPF neighbors should not attempt DR/BDR election. Changing the OSPF network type to point-to-point on either R1 or R2 ensures correct adjacency formation and allows the routers to progress to the FULL state.

On AOS-CX switches, the cable diagnostic tool (Time Domain Reflectometry for 1000BaseT) provides a distance-to-fault accuracy of approximately ±2 meters, which is standard for Ethernet PHY-based diagnostics.

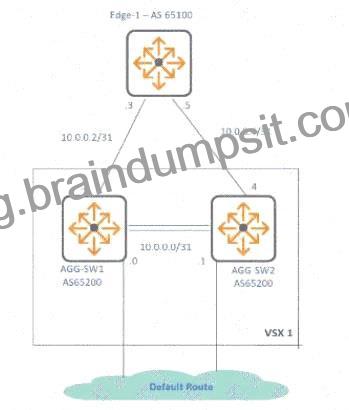

The question involves troubleshooting BGP issues on an AOS-CX switch, and the task is to identify the appropriate CLI command to begin the troubleshooting process.
* Analysis of Options:
* Option A (show run | route destination):Incorrect syntax; the show running-config command with a filter is not specific to BGP troubleshooting.
* Option B (show debug start):Incorrect; AOS-CX does not use show debug start for initiating debugging.
* Option C (show buffer | debug):Incorrect; this is not a valid AOS-CX command for BGP troubleshooting.
* Option D:Correct. The show debug destinations command displays the current debug settings, including whether BGP debugging is enabled, which is a critical first step in troubleshooting BGP issues.
* Why Option D is Correct:To troubleshoot BGP issues, the first step is to verify if debugging is enabled for BGP events, as this provides detailed logs of session states, messages, and errors. The show debug destinations command on AOS-CX switches shows which debug types (e.g., BGP) are active and where logs are sent (e.g., console, syslog). If BGP debugging is not enabled, the administrator can enable it using debug bgp to capture relevant information, making this the ideal starting point for BGP troubleshooting.
* Relevance to Certification Objectives:
* Troubleshooting (10%):Involves performing advanced troubleshooting of routing protocols like BGP.
* Routing (16%):Includes diagnosing BGP session and configuration issues.
References:
HPE Aruba Networking AOS-CX Configuration Guide: Debugging and Logging, detailing debug commands.
HPE7-A06Study Guide: Covers BGP troubleshooting workflows.
HPE Aruba Networking Technical Documentation: AOS-CX CLI Reference, explaining show debug destinations.

The question involves configuring an OSPF virtual link to extend area 0 across a non-backbone area, based on an exhibit (not provided) and four configuration options (A to D). Since the exhibit is unavailable, I will assume a typical scenario where a virtual link is needed to connect two area 0 segments through a transit area (e.g., area 1).
* Analysis of Options (Assumed Context):A virtual link is configured using the area <transit-area> virtual-link <router-id> command in the OSPF process. The correct option likely includes:
* Option A:Incorrect syntax or incorrect router ID/area for the virtual link.
* Option B:Incorrect configuration, possibly missing the virtual link or using wrong parameters.
* Option C:Correct. Likely includes the proper command, e.g., area 1 virtual-link 2.2.2.2, where area 1 is the transit area and 2.2.2.2 is the router ID of the remote ABR.
* Option D:Incorrect, possibly configuring an unnecessary or incorrect virtual link.
* Why Option C is Correct:OSPF requires all areas to connect to the backbone area (area 0). If two area
0 segments are separated by a non-backbone area (e.g., area 1), a virtual link is configured between the Area Border Routers (ABRs) to logically extend area 0 through the transit area. The command area
<transit-area> virtual-link <remote-router-id> is used, specifying the transit area and the router ID of the remote ABR. Option C is assumed to provide the correct syntax and parameters based on standard OSPF virtual link configurations, ensuring area 0 connectivity and proper route advertisement.
* Relevance to Certification Objectives:
* Routing (16%):Designing and troubleshooting OSPF topologies, including virtual links.
* Troubleshooting (10%):Resolving OSPF area connectivity issues.
References:
HPE Aruba Networking AOS-CX Configuration Guide: OSPF Configuration, detailing virtual link setup.
HPE7-A06Study Guide: Covers OSPF advanced configurations like virtual links.
RFC 2328: OSPF Version 2, explaining virtual link functionality.

The question asks which tables are synchronized between a pair of CX 8325 switches in a Virtual Switching Extension (VSX) cluster. VSX is a high-availability solution that synchronizes specific tables to ensure consistent operation across both switches.
* Analysis of Options:
* A. BGP Neighbors:BGP neighbor tables are not synchronized in VSX; each switch maintains its own BGP sessions.
* B. MAC address:Correct. VSX synchronizes the MAC address table to ensure consistent Layer
2 forwarding across both switches.
* C. Spanning-Tree Protocol (STP):STP states are not synchronized; each switch runs its own STP instance, though they coordinate to avoid loops.
* D. IP Routing:Correct. VSX synchronizes the IP routing table to ensure consistent Layer 3 forwarding.
* E. Link Layer Discovery Protocol (LLDP):LLDP information is not synchronized; each switch maintains its own neighbor information.
* Why B and D are Correct:In a VSX cluster, the MAC address table and IP routing table are synchronized to ensure seamless Layer 2 and Layer 3 operations. This synchronization allowsboth switches to share a common view of the network, enabling features like active-active forwarding and hitless failover. The vsx-sync feature in AOS-CX ensures these tables are kept consistent across the VSX pair.
* Relevance to Certification Objectives:
* Network Resiliency and Virtualization (8%):Involves designing and troubleshooting VSX for resiliency and redundancy.
* Switching (19%):Includes implementing and troubleshooting Layer 2 technologies like MAC address tables.
* Routing (16%):Covers IP routing table synchronization in VSX environments.
References:
HPE Aruba Networking AOS-CX Configuration Guide: VSX Configuration, detailing table synchronization.
HPE7-A06Study Guide: Covers VSX architecture and synchronization mechanisms.
HPE Aruba Networking Technical Documentation: VSX Overview, explaining MAC and routing table synchronization.
VSX (Virtual Switching Extension) synchronizes state information between the two switches in a cluster to enable active-active forwarding and provide a single logical view to downstream devices.
Analysis of Options:
A: BGP Neighbors: BGP sessions are typically established independently by each VSX member. While configurations can be synced, the dynamic state/neighbor table itself is not a core VSX synchronization item.
B: MAC address: The MAC address table is synchronized between VSX members. This is crucial for Layer 2 forwarding consistency and allowing either switch to forward traffic destined for a known MAC address learned via the VSX pair.
C: Spanning-Tree Protocol (STP): STP runs independently on each physical switch. VSX uses technologies like MC-LAG to provide loop-free active-active paths downstream, reducing reliance on STP blocking, but the STP state itself isn’t synchronized via the ISL.
D: IP Routing: While the full IP routing table (RIB) is built independently on each switch via routing protocols, VSX Active Gateway synchronizes necessary Layer 3 information (like virtual gateway IP and MAC, and potentially ARP entries) to ensure consistent first-hop routing and failover. Some sources might broadly categorize ARP synchronization under L3/IP routing context in VSX. Given that the ARP table (essential for L3 forwarding consistency) is synchronized, and it’s not listed separately, “IP Routing” might encompass this synchronization aspect.
E: Link Layer Discovery Protocol (LLDP): LLDP information relates to physically connected neighbors of each switch and is not synchronized across the VSX ISL.
Conclusion: The MAC address table (B) is definitively synchronized. The ARP table is also synchronized, which is fundamental for Layer 3 forwarding consistency provided by Active Gateway. As ARP is not explicitly listed, and “IP Routing” (D) is, D is the most likely second answer intended to cover the necessary L3 state synchronization (primarily ARP and Active Gateway state) performed by VSX.
References: AOS-CX VSX Guide (specifically sections on State Synchronization, ISL, Active Gateway), VSX Fundamentals documentation. This relates to “Network Resiliency and virtualization” (8%) and
“Switching” (19%) objectives.

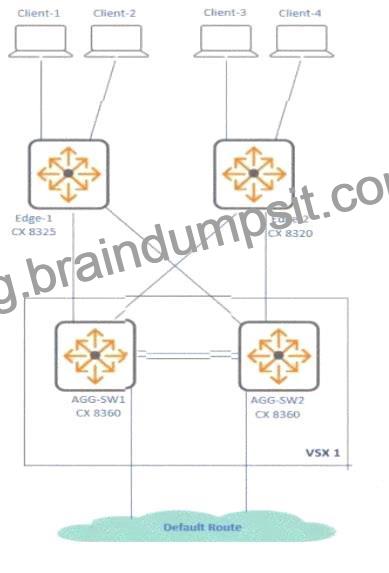

The requirement is to secure independent network users from each other in a conference venue using Edge-1.
This scenario typically calls for Private VLANs,specifically using the ‘isolated’ type to prevent communication between hosts within the same secondary VLAN.
* Analysis of Options:
* Private VLANs consist of a primary VLAN and one or more secondary VLANs (isolated or community). Isolated ports cannot communicate with other isolated ports in the same VLAN; they can only communicate with promiscuous ports (usually the router uplink). Community ports can communicate with each other and promiscuous ports.
* Option A: Configures VLAN 152 as private-vlan community.
* Option B: Configures VLAN 151 as private-vlan community.
* Option C: Defines VLAN 152 as a primary-vlan associated with itself, which isn’t standard syntax
/logic.
* Option D: Defines VLAN 151 as a primary-vlan associated with itself.
* The goal isisolation. None of the options directly configure an isolated VLAN. Options A and B configure community VLANs, which allow communication between users within that VLAN, contradicting the requirement. Options C and D attempt to define primary VLANs in a potentially incorrect way.
* Caveat:There seems to be an issue with the provided options. Standard configuration to make VLAN 151 isolated would involve defining a primary VLAN (e.g., vlan 152 private-vlan primary) and then defining VLAN 151 as isolated (vlan 151 private-vlan isolated). Since none of the options correctly configure anisolatedVLAN, and the requirement is isolation, the question or options are likely flawed. However, if forced to interpret intent, questions sometimes test understanding of thetypesof private VLANs. Changing a VLANtocommunity type (Option B for VLAN 151) is a distinct action, even if it doesn’t meet the statedisolationgoal. Without correct options for ‘isolated’, selecting the ‘best’ flawed option is difficult. Assuming the question intends to configure VLAN 151 assome typeof private secondary VLAN, Option B modifies VLAN 151’s private VLAN characteristic.
* Conclusion:Based on the requirement for isolation, none of the provided options are correct. However, if assuming a potential error in the question or options and needing to select the closest modification related to private VLAN types for VLAN 151, Option B is chosen tentatively, despite configuring
‘community’ instead of the required ‘isolated’.
References:AOS-CX Security Guide (Private VLAN configuration), Private VLAN concepts (Primary, Isolated, Community). This relates to the “Switching” (19%) and “Security” (10%) objectives.

In HPE Aruba Networking Central, advanced wireless troubleshooting includes:
Live events with packet capture → allows real-time analysis of client association, authentication,

and data traffic.
Spectrum analysis → detects RF interference and channel utilization issues impacting wireless

performance.

New PoE-powered door locks, connected via the PoE passthrough port on Aruba APs, are not working. We need to find the likely cause related to PoE power.
* PoE Passthrough:An AP feature where the AP, powered by PoE from a switch, provides PoE power out to another device connected to one of its Ethernet ports.
* Power Budget:The AP must receive enough power from the switch via its PoE input (e.g., 802.3af,
802.3at, 802.3bt) to power itselfandmeet the power demand of the downstream device (the door lock).
* PoE Standards Power (Approx. Available to Device):
* 802.3af (PoE): ~13 Watts
* 802.3at (PoE+): ~25.5 Watts
* 802.3bt (PoE++): 51W (Type 3) or 71W (Type 4)
* Analysis:Modern APs (especially Wi-Fi 6/6E) can consume significant power themselves (>15W or
>25W under load). Standard 802.3af PoE (supplying only ~13W) is often insufficient to power both a modern AP and a downstream PoE device like a door lock. The AP will power up, but won’t enable PoE output if its input power budget is insufficient.
* Analysis of Options:
* A, B: Too much power (AT/BT) isn’t the issue; devices only draw what they need.
* C: AF power (~13W) received by the AP is very likelynot enoughto power both the AP and the door lock.
* D: AT power (~25.5W)mightbe insufficient if the combined load of the AP and lock exceeds this, but AF being insufficient (C) is a more common limitation.
* Conclusion:Insufficient input power to the AP is the most common reason for PoE passthrough failure.
802.3af (PoE) power is often inadequate.
References:IEEE 802.3 PoE standards (af/at/bt), Aruba Access Point datasheets (PoE requirements, passthrough capabilities/budgets). This relates to “WLAN” (9%) and “Connectivity” (9%) objectives.

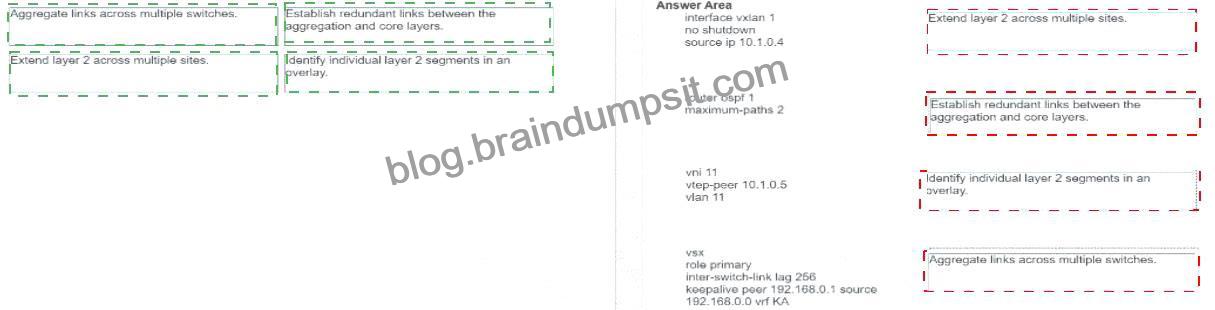

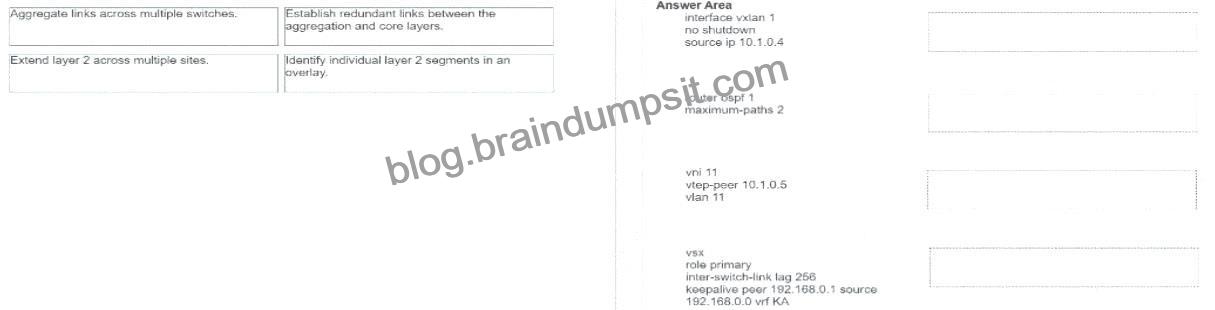

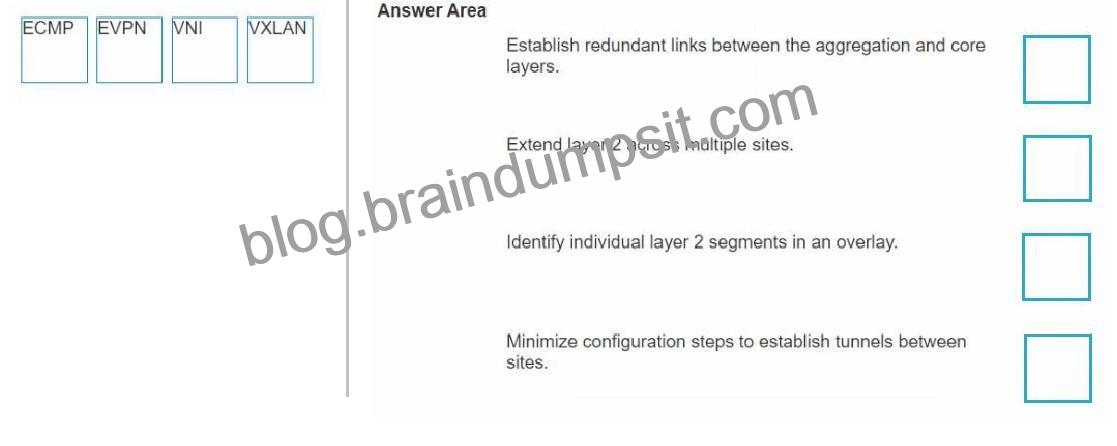

Explanation:
* Aggregate links across multiple switches –>
vsx
role primary
inter-switch-link lag 256
keepalive peer 192.168.0.1 source 192.168.0.0 vrf KA
(Snippet 4)
* Establish redundant links between the aggregation and core layers –> router ospf 1 maximum-paths 2 (Snippet 2)
* Extend layer 2 across multiple sites –>
interface vxlan 1
no shutdown
source ip 10.1.0.4
(Snippet 1)
* Identify individual layer 2 segments in an overlay –>
vni 11
vtep-peer 10.1.0.5
vlan 11
(Snippet 3)
Comprehensive Detailed Explanation along with All References available from related to the HPE Campus Access Switching Expert certification objectives at end of each question below:
* Aggregate links across multiple switches:This requirement describes Multi-Chassis Link Aggregation (MC-LAG), where a device forms a LAG to two separate upstream switches that act as a logical pair. In AOS-CX, VSX (Virtual Switching Extension) enables this functionality. Snippet 4 shows commands related to setting up VSX (vsx, role primary, inter-switch-link, keepalive), which is the foundation for MC-LAG.
References:AOS-CX VSX Guide.Relates to “Network Resiliency and virtualization” (8%), “Switching” (19%).

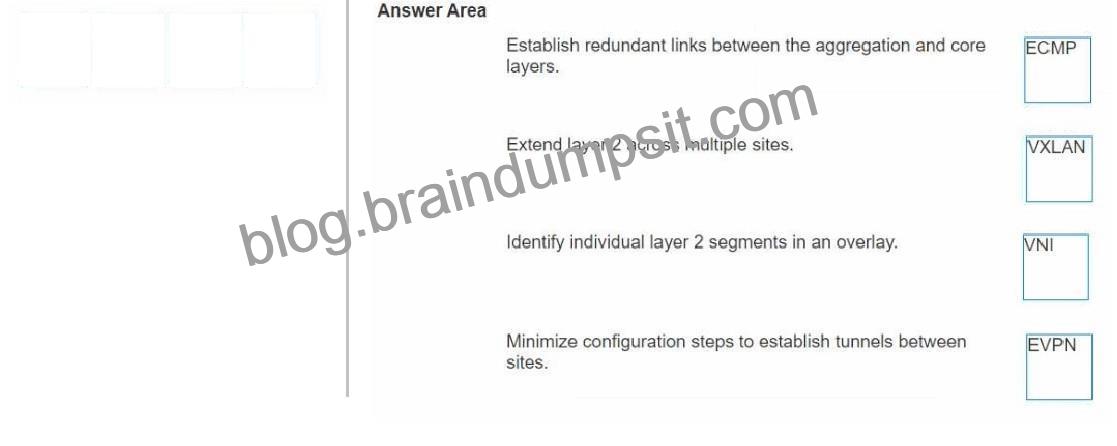

Establish redundant links between the aggregation and core layers:This often involves Layer 3 routing protocols utilizing multiple paths. Snippet 2 (router ospf 1, maximum-paths 2) configures OSPF to use up to two Equal Cost Multi-Paths (ECMP). If redundant links between aggregation and core result in equal OSPF costs, this command enables load sharing and redundancy at Layer 3.
References:AOS-CX IP Routing Guide (OSPF, ECMP). Relates to “Routing” (16%), “Network Resiliency and virtualization” (8%).
Extend layer 2 across multiple sites:VXLAN (Virtual Extensible LAN) is the standard overlay technology for extending Layer 2 segments over an underlying Layer 3 network, enabling L2 adjacency across different physical locations (sites, racks, pods). Snippet 1 shows the basic configuration of a VXLAN tunnel interface (interface vxlan 1, source ip), which is the core component for VXLAN tunneling.
References:AOS-CX VXLAN Guide.Relates to “Switching” (19%), “Connectivity” (9%).
Identify individual layer 2 segments in an overlay:Within a VXLAN overlay, each separate Layer 2 broadcast domain (typically corresponding to a VLAN) is identified by a unique VXLAN Network Identifier (VNI). This VNI tags the encapsulated traffic. Snippet 3 shows the configuration associating VNI 11 with the local VLAN 11 (vni 11, vlan 11). The vtep-peer command is relevant when using EVPN as the control plane.
This configuration directly maps an L2 segment (VLAN 11) to its identifier (VNI 11) within the overlay.
References:AOS-CX EVPN Guide, AOS-CX VXLAN Guide.Relates to “Switching” (19%), “Connectivity” (9%).

The GR helper must be configured with a grace period timer so it knows how long to continue advertising adjacencies while the restarting router recovers.
If the grace period is set too long, routing updates may be suppressed unnecessarily, delaying convergence.

In an AOS-CX VSX cluster, both members act as independent routing and multicast-capable devices. Each VSX node maintains its own control plane, so both members can independently perform functions like routing, running PIM, and acting as PIM Designated Router (PIM-DR).
Other functions, such as ARP replies with the cluster vMAC or gratuitous ARPs, are handled by the active gateway only, not both switches.

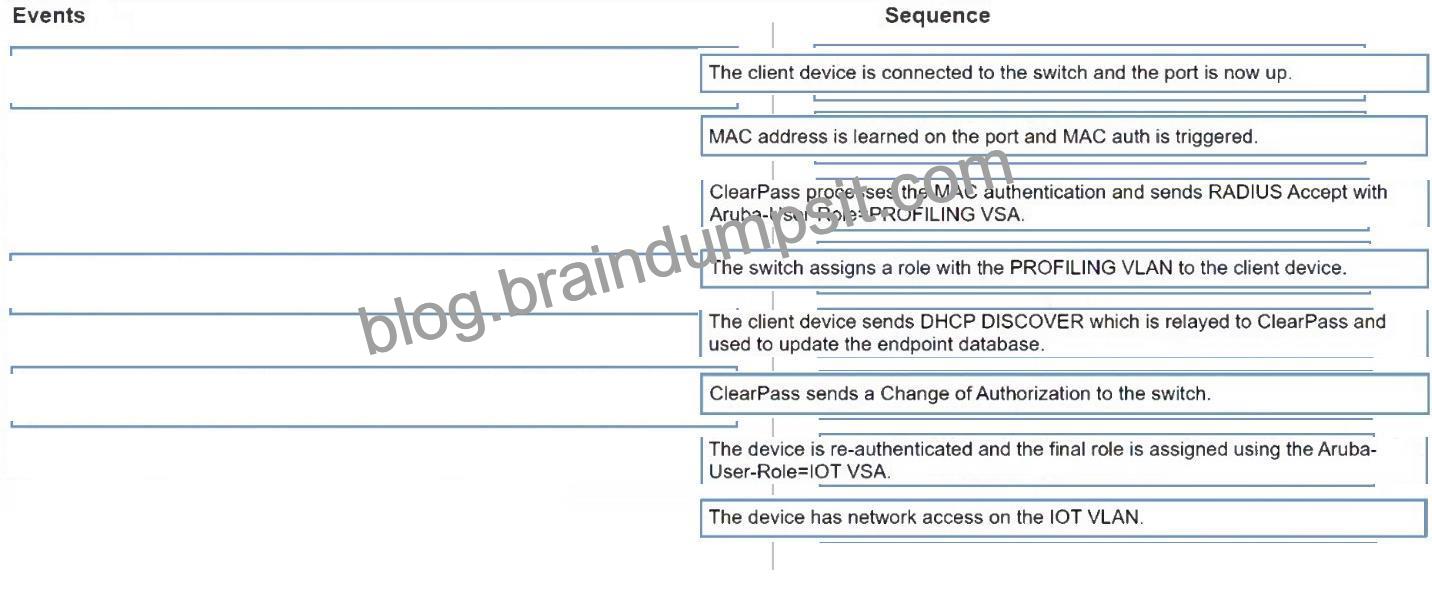

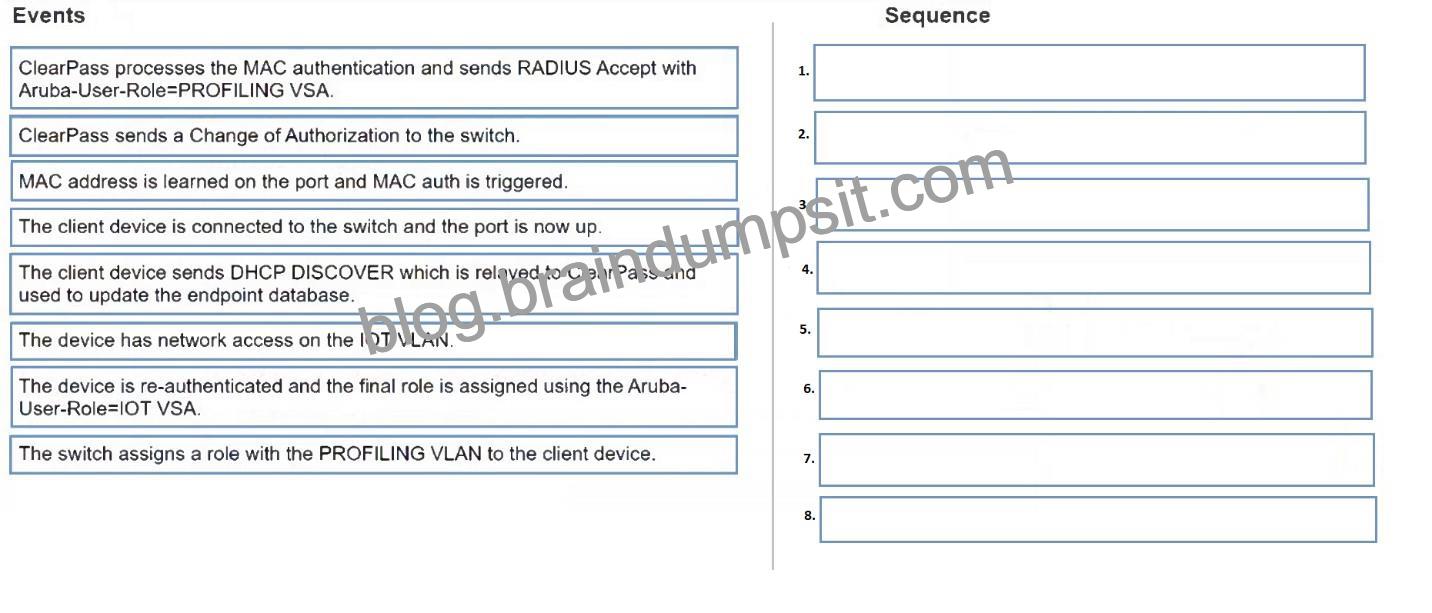

Explanation:
1. The client device is connected to the switch and the port is now up.
2. MAC address is learned on the port and MAC auth is triggered.
3. ClearPass processes the MAC authentication and sends RADIUS Accept with Aruba-User- Role=PROFILING VSA.
4. The switch assigns a role with the PROFILING VLAN to the client device.
5. The client device sends DHCP DISCOVER which is relayed to ClearPass and used to update the endpoint database.
6. ClearPass sends a Change of Authorization to the switch.
7. The device is re-authenticated and the final role is assigned using the Aruba-User-Role=IoT VSA.
8. The device has network access on the IoT VLAN.
The sequence starts with the device connecting and MAC authentication triggering. ClearPass provides a profiling role, the switch assigns it, then DHCP profiling occurs. ClearPass updates its endpoint database, triggers a Change of Authorization (CoA), and re-authenticates the device with the IoT role, granting final network access.
